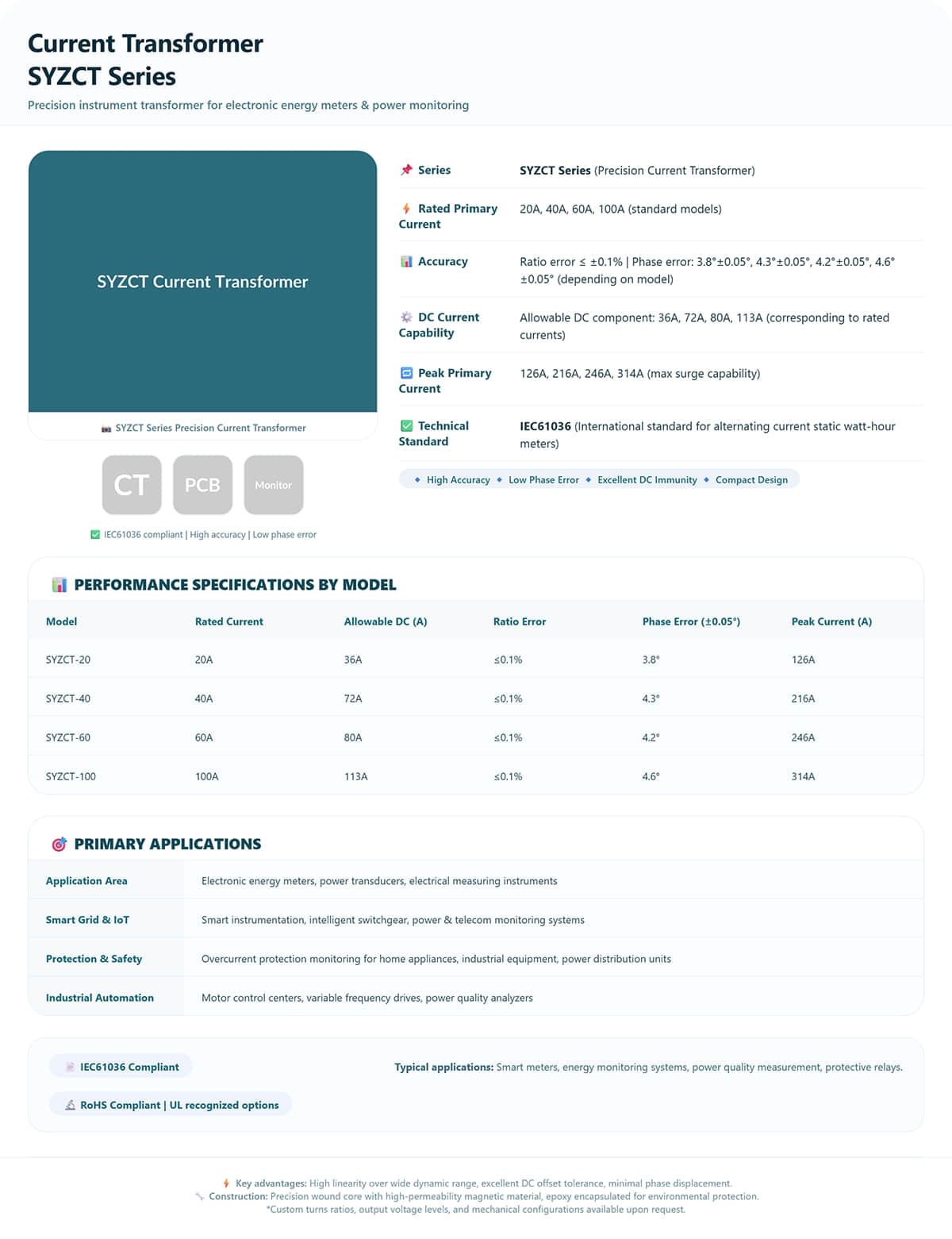

SYZCT Series Precision Current Transformers

High-Accuracy Current Measurement for Energy Metering and Power Monitoring

The SYZCT Series Precision Current Transformer is designed for accurate electrical current measurement, monitoring, metering, and measurement-system applications. As an instrument current transformer, the SYZCT series converts primary current into a proportional secondary current signal that can be used by measuring instruments, energy meters, monitoring systems, and other electrical measurement equipment.

For applications where current measurement accuracy and signal consistency are important, selecting the correct current transformer requires more than simply matching the primary current. The transformer ratio, accuracy requirements, secondary output, burden, operating conditions, installation space, and connected measuring equipment should all be considered.

Hefei Ke Ningman New Energy Materials Technology Co., Ltd. provides current transformer products and customized solutions for customers requiring reliable current measurement components for electrical and industrial applications.

Key Features of SYZCT Precision Current Transformers

• Designed for precision electrical current measurement

• Suitable for current sensing, energy metering, and power monitoring applications

• Stable current transformation for measuring equipment

• Available for different electrical measurement requirements

• Compact transformer designs can be configured according to application requirements

• Suitable for integration into electrical monitoring and measurement systems

• Custom specifications can be discussed according to primary current, secondary output, accuracy, burden, dimensions, and installation requirements

• Manufactured with controlled production and quality inspection processes

SYZCT Series Current Transformer Applications

Precision current transformers are widely used where electrical current needs to be measured, monitored, or converted into a usable signal for measurement equipment.

Typical applications include:

Energy Metering

Current transformers can be integrated into energy measurement systems to provide a proportional current signal to electricity meters and related monitoring equipment.

Power Monitoring

The SYZCT series can be used as part of electrical power monitoring systems for measuring current in industrial equipment, electrical panels, distribution systems, and other power-related applications.

Electrical Measurement Equipment

Precision current transformers are commonly used with measuring instruments and electrical monitoring equipment where current transformation accuracy is an important consideration.

Industrial Electrical Systems

Current transformers can support current measurement and monitoring in industrial electrical equipment, control systems, and power distribution applications.

Energy Management Systems

Current measurement is an important part of energy monitoring and energy management. A properly selected current transformer can provide the current signal required by an energy monitoring system.

How to Select a Precision Current Transformer

Choosing a precision current transformer should be based on the complete electrical and mechanical requirements of the application.

1. Primary Current

The rated primary current should match the current that the transformer is expected to measure. Selecting an appropriate current ratio helps the CT operate within its intended measurement range.

2. Secondary Current

The secondary output must be compatible with the connected meter, measuring instrument, monitoring device, or control system.

3. Accuracy Requirement

Current transformer accuracy is affected by operating current, burden, and other application conditions. Different accuracy classes are designed for different measurement requirements, so the required accuracy should be confirmed before ordering.

For example, industry-standard CT accuracy classes can include 0.1, 0.2, 0.2S, 0.5, 0.5S, 1, and 3 depending on the applicable standard and application. The appropriate class should be selected according to the actual measurement requirements rather than simply choosing the highest nominal accuracy.

4. Burden

The connected meter, wiring, and other secondary-side components contribute to the CT burden. An unsuitable burden can affect measurement performance, so the CT should be matched with the complete secondary circuit.

5. Installation Requirements

The available installation space, mounting structure, connection method, enclosure, and electrical clearance should be considered before finalizing the transformer design.

6. Operating Conditions

Temperature, frequency, insulation requirements, continuous operating current, and the surrounding electrical environment should be reviewed when selecting a current transformer.

Why Current Transformer Accuracy Matters

A current transformer does not simply reduce current. It must reproduce the primary current in a controlled and predictable way so that the connected measurement system receives an appropriate secondary signal.

CT accuracy is normally evaluated using ratio error and phase-angle error under specified operating conditions. Accuracy can also vary with the percentage of rated primary current and the connected burden.

This is particularly important for:

• Energy metering

• Electrical power monitoring

• Industrial energy management

• Electrical measurement instruments

• Monitoring and control systems

For this reason, the current transformer should be selected according to the complete measurement system rather than based on the current ratio alone.

Precision Current Transformer Manufacturer and Supplier

Hefei Ke Ningman New Energy Materials Technology Co., Ltd. supplies current transformers and other specialized electronic and magnetic material products for industrial customers.

Our engineering and production capabilities support both standard products and application-specific requirements. For projects requiring a custom precision current transformer, customers can provide their required primary current, secondary current, accuracy class, burden, frequency, dimensions, mounting method, insulation requirements, and operating conditions for technical evaluation.

Our product development and quality-control approach focuses on dimensional consistency, stable electrical performance, and suitability for the customer's application.

Custom SYZCT Current Transformer Solutions

Different electrical measurement systems can require different current transformer configurations.

If your project requires a customized SYZCT precision current transformer, please provide as much of the following information as available:

Our technical team can review the application requirements and recommend a suitable current transformer configuration.

SYZCT Series Precision Current Transformer FAQs

What is a precision current transformer?

A precision current transformer is an instrument transformer designed to reproduce a primary current as a proportional secondary current with controlled measurement error. It is commonly used for electrical measurement, energy metering, power monitoring, and related applications.

What is the difference between a current transformer and a precision current transformer?

A standard current transformer may be designed primarily for general current measurement or protection, while a precision current transformer places greater emphasis on controlled ratio and phase-angle errors under specified operating conditions. The appropriate type depends on the requirements of the connected measurement system.

What affects current transformer accuracy?

Current transformer accuracy can be affected by the rated primary current, actual operating current, secondary burden, frequency, core characteristics, temperature, and the connected measurement circuit. Therefore, the complete application conditions should be considered when selecting a CT.

What accuracy class should I choose for a current transformer?

The required accuracy class depends on the measurement application and applicable standard. Metering and precision measurement applications may require tighter accuracy than general monitoring applications. The required class should be determined from the measurement-system specifications.

Can the SYZCT Series be customized?

Yes. Custom requirements can be evaluated based on parameters such as current ratio, accuracy, burden, dimensions, mounting configuration, connection method, and application conditions.

Where are precision current transformers used?

Precision current transformers are commonly used in energy meters, power monitoring systems, electrical measurement equipment, industrial electrical systems, energy management systems, and other applications requiring current measurement.

How do I request a quotation for a SYZCT current transformer?

Send your required primary current, secondary current, accuracy, burden, frequency, dimensions, application, and quantity. If some parameters are not yet confirmed, provide the information available and our technical team can review the requirements.

Request a SYZCT Precision Current Transformer Quote

Looking for a precision current transformer manufacturer for your electrical measurement or energy monitoring project?

Contact Hefei Ke Ningman New Energy Materials Technology Co., Ltd. with your required current ratio, accuracy, burden, dimensions, application, and quantity.

Our team can evaluate your requirements and provide a suitable SYZCT Series precision current transformer solution for your project.
