Smart Ultrasonic Laser Bird Repeller | Substation & Power Plant Bird Deterrent System

Description

Advanced bird repeller for substations & power plants: 520nm green laser, ultrasonic, voice alarms, and intelligent PTZ. AC 220V/solar powered, IP65 waterproof, >300m range. Protects critical electrical infrastructure.

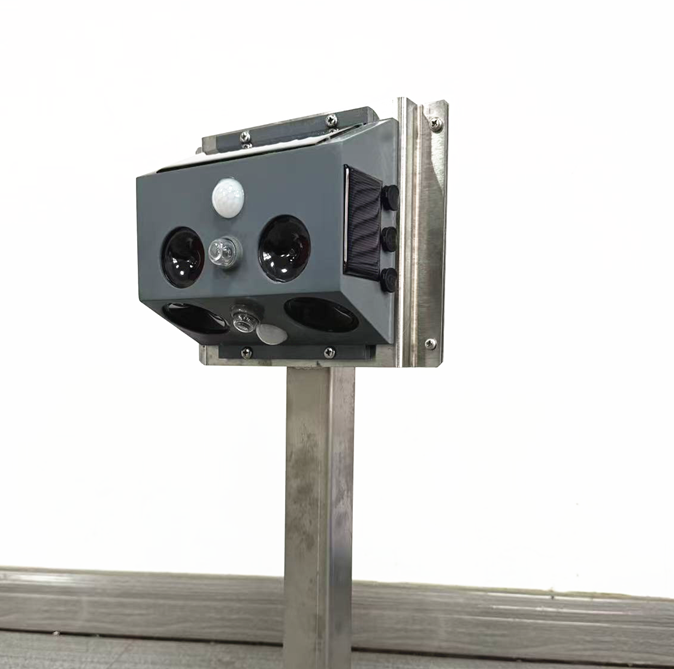

Smart Ultrasonic Laser Bird Repeller for Substations and Power Plants

Intelligent Multi-Mode Bird Deterrent for Electrical Infrastructure

The Smart Ultrasonic Laser Bird Repeller is an intelligent bird deterrent system designed for substations, power plants, and other electrical infrastructure where bird activity may create operational and maintenance challenges.

Combining green laser deterrence, ultrasonic technology, audible warnings, and an intelligent PTZ (pan-tilt-zoom) mechanism, this system is designed to provide flexible bird management for outdoor industrial environments.

According to the current product configuration, the system features a 520 nm green laser, AC 220 V or solar power options, and an IP65-rated enclosure. The stated operating range is over 300 meters; actual performance depends on installation conditions, visibility, configuration, and the manufacturer's specified test method.

For power utilities, electrical engineering contractors, and industrial facility operators, an intelligent laser and ultrasonic bird repeller can be considered as part of a broader bird management and preventive maintenance strategy.

Key Features of the Smart Ultrasonic Laser Bird Repeller

• Green laser deterrence: Uses a 520 nm green laser as a visual bird deterrent.

• Ultrasonic deterrence: Provides an additional deterrent method alongside laser-based operation.

• Audible warning system: Supports sound-based bird deterrence according to the configured system.

• Intelligent PTZ mechanism: Enables directional positioning and scanning, subject to the actual control configuration.

• Flexible power options: AC 220 V or solar power, according to the selected configuration.

• Outdoor protection: IP65-rated enclosure as specified for the current product.

• Industrial applications: Designed for substations, power plants, and related electrical infrastructure.

• Application-oriented configuration: Selection can be based on the site layout, target area, power supply, and bird activity.

How Does a Smart Laser and Ultrasonic Bird Repeller Work?

An intelligent bird deterrent combines one or more stimuli to discourage birds from entering or remaining in a protected area. The operating sequence depends on the system's actual controller and configuration.

1. Green Laser Bird Deterrence

The system uses a 520 nm green laser as a visual stimulus. Laser-based deterrence may be suitable for selected outdoor areas where the beam path and surrounding environment allow controlled operation.

The effectiveness of laser deterrence varies by bird species, lighting conditions, site layout, and operating method. It should be assessed under the intended installation conditions rather than assumed to be identical at every site.

2. Ultrasonic Bird Deterrence

Ultrasonic systems emit high-frequency acoustic energy as a potential deterrent. Their suitability depends on the species being managed, frequency range, sound output, obstacles, and the surrounding environment.

The ultrasonic frequency range and output level of this product should be confirmed using the manufacturer's technical datasheet.

3. Audible Bird Deterrence

The audible warning function provides another potential deterrent method. Depending on the configured sound system, audible signals can supplement visual and ultrasonic stimuli.

Sound selection and operating schedules should consider nearby workers, neighboring facilities, local noise requirements, and the target bird species.

4. Intelligent PTZ Positioning

The PTZ mechanism allows the device to change its pointing direction. Depending on the actual control system, this may support directional adjustment, scanning, or preset positions.

The available rotation angles, scanning speed, control interface, and automatic patrol functions should be confirmed for the specific model.

Applications of an Intelligent Bird Deterrent System

Electrical Substations

Substations contain insulators, busbars, transformers, and other electrical equipment that require reliable operation and regular maintenance. Bird activity around these components can create contamination and maintenance concerns.

A smart laser and ultrasonic bird repeller can be evaluated as part of a site-specific bird management plan.

Power Plants

Power plants contain extensive outdoor electrical equipment, structures, and utility areas. Bird deterrent equipment may help manage bird activity in selected locations where conventional passive deterrents are insufficient.

Power Distribution Facilities

Electrical distribution facilities may have structures suitable for bird perching and nesting. An intelligent bird deterrent can supplement inspection, cleaning, and other preventive maintenance measures.

Industrial Outdoor Facilities

Other industrial sites may also consider laser or ultrasonic bird deterrents where bird activity affects equipment cleanliness, maintenance requirements, or site operations.

The appropriate solution should be determined through a site assessment, including the target species, protected area, environmental conditions, and applicable safety requirements.

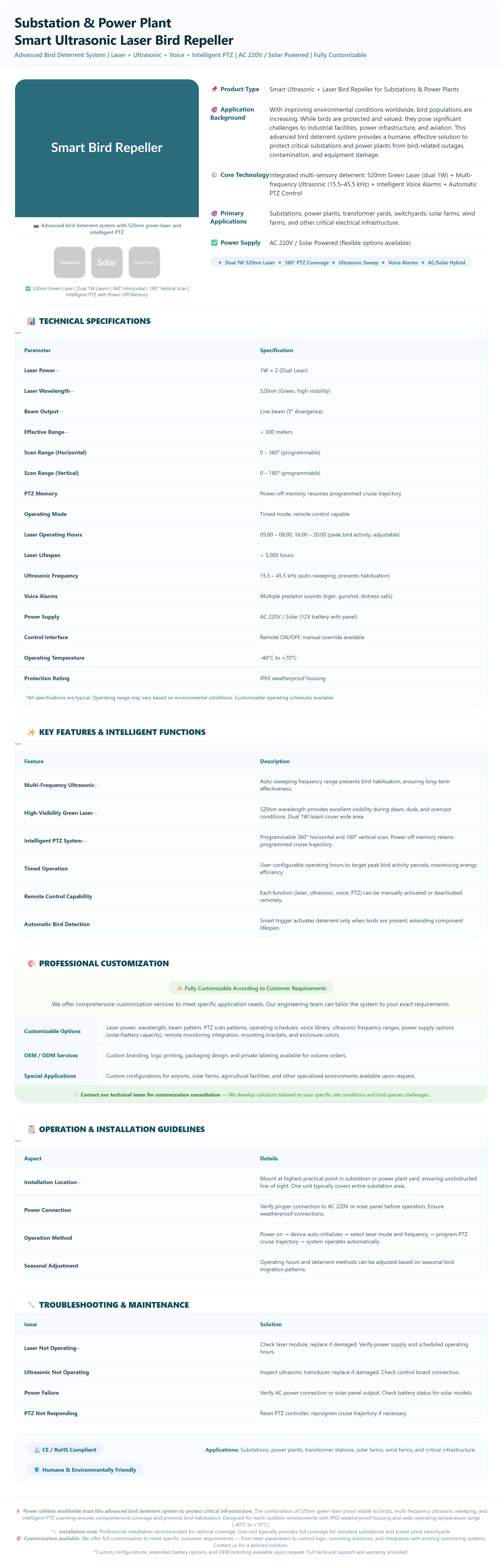

Technical Specifications

Important: Confirm every specification against the current production model before publication or quotation. In particular, clarify whether the stated range refers to laser projection distance, detection distance, or demonstrated bird-deterrence range.

How to Choose a Bird Repeller for a Substation

Selecting a bird deterrent for electrical infrastructure requires consideration of more than the advertised operating range.

1. Identify the Bird Problem

Determine the bird species, nesting locations, activity times, and areas affected. Different species may respond differently to visual, acoustic, and other deterrent methods.

2. Define the Protection Area

Map the equipment and structures that require protection. Consider line of sight, mounting positions, obstacles, and the intended laser scanning area.

3. Evaluate the Deterrent Technologies

Assess whether laser, ultrasonic, audible, or combined deterrence is appropriate for the target species and operating environment. Do not assume that combining technologies guarantees better results without site-specific evaluation.

4. Select the Power Supply

Confirm whether AC 220 V or a solar-powered configuration is appropriate. For solar installations, evaluate sunlight availability, energy consumption, battery storage, and the required operating schedule.

5. Verify Outdoor Protection

Confirm the enclosure rating, operating temperature range, mounting hardware, and environmental suitability. An IP rating describes specified ingress protection; it does not by itself establish resistance to every weather, corrosion, or electrical hazard.

6. Review Safety and Maintenance Requirements

For installations around electrical infrastructure, consider laser beam paths, electrical clearances, worker access, maintenance procedures, and local requirements. Installation and maintenance should be performed by qualified personnel.

Intelligent Laser Bird Repeller vs. Traditional Bird Deterrents

No single bird deterrent is suitable for every site. Selection should consider the species involved, infrastructure layout, environmental conditions, safety requirements, and the results of field evaluation.

Manufacturer and Customized Bird Deterrent Solutions

Hefei Ke Ningman New Energy Materials Technology Co., Ltd. supplies specialized products for industrial and energy-related applications.

For customers evaluating a smart ultrasonic laser bird repeller, our team can review the intended installation environment and required configuration.

When requesting a quotation, please provide:

• Application site and facility type

• Target bird species, if known

• Approximate protection area

• Required laser and acoustic functions

• Power supply preference

• Installation and mounting requirements

• Environmental conditions

• Required quantity

The technical team can use these details to assess product suitability and identify the specifications that need to be confirmed before ordering.

Frequently Asked Questions

What is a smart ultrasonic laser bird repeller?

It is a bird deterrent system that combines laser-based visual stimuli with ultrasonic and, where configured, audible deterrent functions. Intelligent positioning may help direct the system toward selected areas.

Where can this bird repeller be used?

Potential applications include electrical substations, power plants, power distribution facilities, and other outdoor industrial sites where bird activity creates maintenance or operational concerns.

What is the laser wavelength of this product?

The current product page specifies a 520 nm green laser. Laser output power and laser safety classification should be confirmed in the technical datasheet.

Does the system support solar power?

The current product description lists AC 220 V and solar power options. Confirm the selected model's solar panel rating, battery capacity, and power configuration before ordering.

What does the IP65 rating mean?

IP65 indicates a specified level of protection against dust ingress and water jets under the relevant test conditions. It should not be interpreted as proof of suitability for every environmental condition.

Is the operating range guaranteed to exceed 300 meters?

The current product page states a range exceeding 300 meters. Buyers should confirm the measurement method, environmental conditions, and whether this refers to projection distance, detection distance, or effective bird-deterrence performance.

Can the bird repeller operate automatically?

The system is described as having intelligent PTZ positioning. Automatic scanning, scheduling, remote control, and preset patrol functions should be confirmed for the specific configuration.

How can I request a quotation?

Provide the application site, protection area, required deterrent functions, power supply, environmental conditions, and quantity. The manufacturer can then review the requirements and confirm the appropriate configuration.

Request a Quote for a Smart Ultrasonic Laser Bird Repeller

Looking for an intelligent bird deterrent for a substation, power plant, or industrial facility?

Contact Hefei Ke Ningman New Energy Materials Technology Co., Ltd. with your application requirements. We can review the required laser, ultrasonic, audible, positioning, and power configurations and help you determine the appropriate specifications for your project.
